技術參數(shù) TECHNICAL PARAMETERS
材質(MATERIAL)：3003-H112
機械性能(Mechanical property):GB/T6892-2000
抗拉強度(Tensile Strength):>90
條件屈服強度(Offset yield strength):>30
延伸率%(Elongation):>22

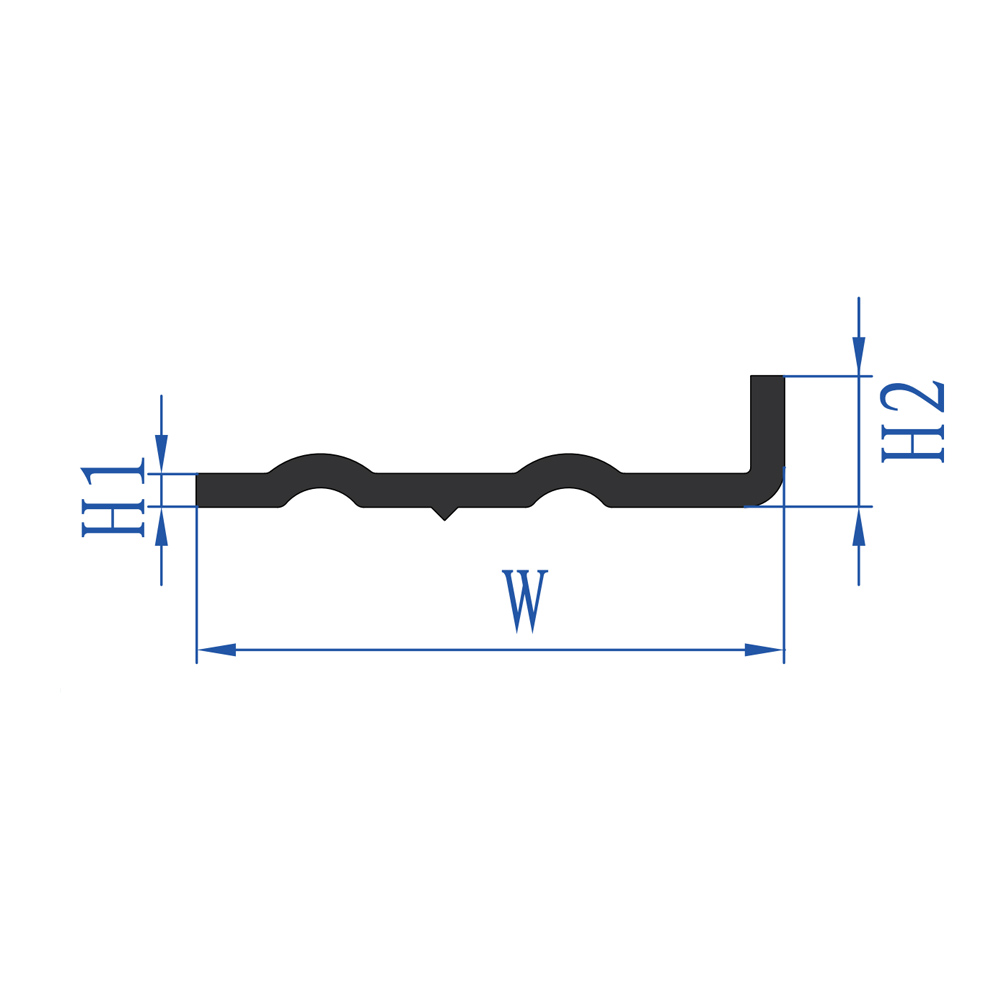

產(chǎn)品規(guī)格表 PRODUCT SPECIFICATIONS TABLE
| 型號 (Model) | 寬度 (r) | 厚度 (h1) | 高度 (h2) |
|---|---|---|---|
| 44.5*10*2.5 | 44.5 | 2.5 | 10 |
| 45*10*2.5 | 45 | 2.5 | 10 |
| 48*10*2.5 | 48 | 2.5 | 10 |
| 50*10*2.5 | 50 | 2.5 | 10 |
| 55.5*10*2.5 | 55.5 | 2.5 | 10 |
| 59*10*4 | 59 | 4 | 10 |
| 60*10*2.5 | 60 | 2.5 | 10 |
| 65*10*2.5 | 65 | 2.5 | 10 |
| 66*10*4 | 66 | 4 | 10 |
| 73.5*9.5*4 | 73.5 | 4 | 9.5 |
| 75.5*36.5*2.5 | 75.5 | 2.5 | 36.5 |
